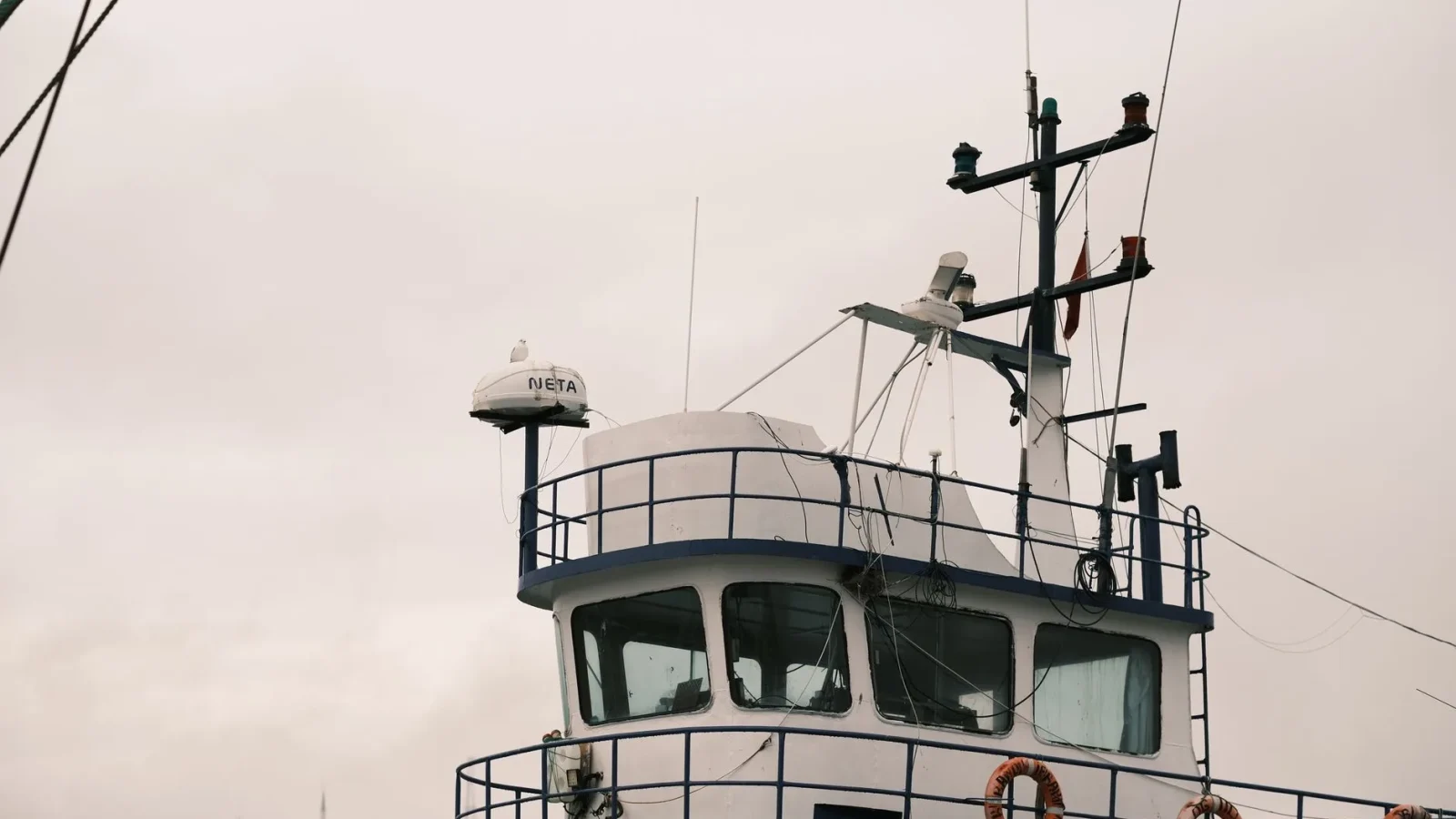

Antenna and Cable Setup for Better Range
Range on the water is not a mystery, and it is rarely the radio’s fault. A boat I sea-trialed last spring had a brand-new 25-watt VHF that could barely reach the marina three miles off, and the owner was ready to send it back. The radio was fine. The signal was leaking out through a cracked antenna connector and a length of tired coax that had been soaking up rain for six seasons. We rebuilt the cable path in an afternoon and got him talking to boats twelve miles out.
Antennas and cables are the part of the job people skip past to get to the shiny screen. That is exactly backward. The antenna and the wire that feeds it decide how far your signal actually travels, and a clean marine antenna cable setup will beat a more expensive radio bolted to a sloppy one every single time.
Why height matters more than watts
VHF radio and most marine data links are line-of-sight, meaning the signal travels in a straight line until the curve of the earth blocks it. Your antenna talks about as far as it can “see” over that horizon, so raising it a few feet does far more than adding transmit power ever could.
The math is not gentle. A radio putting out 25 watts through an antenna 6 feet off the water reaches the horizon at roughly 3 miles. Lift that same antenna to 20 feet and the horizon jumps past 5 miles, and when both boats carry a high antenna the ship-to-ship range stacks up fast.
This is why sailboats with a small 3-foot antenna at the masthead routinely outrange powerboats sitting low with an 8-foot whip. Height wins. If you are planning a full helm from scratch, sort out mounting priorities early using our Marine Electronics Setup Guide, which walks through where signal gear should live before you drill a hole.
Tools and materials you’ll want on the bench
Gather everything before you start so you are not halfway up the tower with the old cable cut and no connector to finish the job.
You want the antenna itself, a matched mount, the right length of low-loss coax, spare PL-259 connectors (the standard threaded plug used on VHF cable), adhesive-lined heat shrink, and a marine sealant like butyl tape. Tools are simple: a sharp knife or coax stripper, a soldering iron for the connector, a heat gun, a drill for the mount, and a multimeter. If you own or can borrow an SWR meter, it will tell you in two minutes whether the finished job is actually radiating.
Step 1: Pick the antenna for your boat and your range
Antenna gain is measured in dB, and higher gain squeezes the signal into a flatter pattern that reaches farther on calm water but can shoot over a nearby boat when you roll in a chop. For most trailer boats and center consoles, a 6 dB, 8-foot fiberglass whip is the sweet spot.
Sailboats go the other way: a low-gain 3 dB antenna at the masthead keeps the signal usable even as the boat heels, because a high-gain beam would swing its pattern into the sky and the water as the mast rocks. Match the gain to how the boat moves.
Do not overbuy gain hoping for miles you cannot reach anyway. A 9 dB antenna on a small boat that pitches in every wake will often perform worse in the real world than a modest 6 dB unit that keeps its energy near the horizon where the other boats are.
Step 2: Choose the right coax, and as little of it as possible
Coax is the cable that carries your signal from the radio to the antenna, and it is not all the same. Thin cable loses signal to heat as it travels, and that loss is measured in dB per 100 feet at your working frequency, around 156 MHz for marine VHF.
Two types cover almost every boat. RG-58 is thin, cheap, and fine for very short runs under about 20 feet. RG-8X is a bit thicker and the right default for most helm-to-antenna runs. On tall sportfishers or sailboats with long masthead runs, step up to low-loss RG-213 or LMR-400 and you will hear the difference on the far end.
| Coax type | Loss at 156 MHz (per 100 ft) | Best use | Rough cost |
|---|---|---|---|
| RG-58 | About 6.0 dB | Short runs under 20 ft | $0.50 to $1 / ft |
| RG-8X | About 3.9 dB | Most powerboat helm runs | $1 to $2 / ft |
| RG-213 | About 2.5 dB | Long runs, sailboat masts | $1.50 to $3 / ft |
| LMR-400 | About 1.5 dB | Long low-loss runs | $2 to $4 / ft |
Here is the practical rule: buy only the length you need, and never coil the leftover. A neat coil of surplus coax behind the dash is not tidy, it is a signal drain and a noise antenna. Trim to fit and terminate a fresh connector.
Step 3: Route and seal the cable path
Run the coax in one continuous piece from radio to antenna whenever the boat allows it. Every splice and every connector is a spot where water gets in and signal leaks out, so fewer joints means more range and fewer callbacks.
Keep the coax away from your power cables and sonar wiring, ideally a hand’s width apart, because those leads can inject engine and pump noise straight into your receive audio. When you do need to pass through a bulkhead or deck, use a proper cable gland and bed it in butyl tape.
Step 4: Ground the antenna and check for noise
An antenna does its job against a reference, and a poor ground or a corroded mount can flatten your signal as badly as bad cable. Bond the mount to your boat’s common ground and make sure the mounting hardware is clean, tight metal-to-metal contact, not paint or gelcoat.
Electrical noise is the other quiet range killer. If you hear a whine that rises with engine RPM, you likely have alternator or charging noise coupling into the coax run. Rerouting the cable and adding a ground can clear it, and if your charging system is the culprit it is worth reviewing how the whole bank is wired, which our Lithium Boat Battery Upgrade Guide covers alongside clean grounding practice.
Step 5: Test with an SWR meter before you trust it
SWR, or standing wave ratio, tells you how much of your transmit power actually leaves the antenna versus bouncing back down the cable. It is the single best five-minute check you can run, and it catches a bad connector or a dead antenna before you ever need the radio in anger.
Connect the SWR meter between the radio and the antenna cable, key up on a low-traffic channel, and read the ratio. A reading under 1.5:1 is good, 1.5 to 2.0 is workable, and anything above 3.0 means power is reflecting back and something in your cable path is wrong.
A worked example: rewiring that three-mile boat
Take the center console I mentioned at the top. It had 24 feet of old RG-58 losing about 1.4 dB over that run when new, and far more once the shield corroded, plus a cracked connector letting water into the braid. The owner assumed the radio was weak.
We pulled the old cable and ran 24 feet of fresh RG-8X, which loses under 1 dB over that length. New PL-259 connectors, soldered and sealed, a cleaned and re-bonded mount, and an SWR check that came back at 1.3:1. Parts ran about $70 and the job took roughly three hours. His usable range went from barely 3 miles to a solid 12, with the same radio he was about to return.
Where antenna work fits your wider electronics plan
The cable path you build for a VHF is the same discipline that gets clean data off a sonar or a GPS. If you are still choosing gear, our guide on How to Choose a Fish Finder and the breakdown in Installing a Marine VHF Radio both lean on the same rule: the antenna and its cable earn their keep long before the head unit does.
Treat the antenna, the coax, and the connectors as one system, not three afterthoughts. Mount it high, feed it with low-loss cable in one clean run, seal every joint, ground it properly, and confirm the whole thing with an SWR reading under 1.5:1. For the technical background on line-of-sight propagation, the plain-English explanation at Wikipedia’s line-of-sight propagation article is worth a read, and free radio-check services listed by BoatUS let you confirm your real-world range once the antenna is up. Do that, and the range problem you thought you had usually turns out to have never been about the radio at all.
Frequently asked questions
Why is my new marine radio getting such short range?
The radio is rarely the problem. Short range almost always traces back to the antenna and its cable: a low mounting height, thin or corroded coax, or a cracked connector letting water into the shield. Rebuilding the cable path with fresh low-loss coax and a sealed connector usually restores full range with the same radio.
What coax should I use for a marine VHF antenna?
For most powerboat helm-to-antenna runs, RG-8X is the right default because it balances low signal loss with an easy diameter to route. Very short runs under about 20 feet can use RG-58, while long masthead or sportfisher runs benefit from low-loss RG-213 or LMR-400. Always buy only the length you need and never coil the leftover, since surplus coax drains signal.
How high should I mount my VHF antenna?
As high as the boat sensibly allows, because VHF is line-of-sight and height sets your range far more than transmit power. A powerboat runs a taller 8-foot whip mounted high to make up for sitting low on the water. A sailboat puts a shorter 3-foot antenna at the masthead and reaches well over 20 miles thanks to the height alone.
What is a good SWR reading for a boat antenna?
Under 1.5:1 is good and means most of your transmit power is leaving the antenna. A reading between 1.5 and 2.0 is workable, while anything above 3.0 signals a fault in the cable path, usually a bad connector, a corroded shield, or a failing antenna. Check SWR with a meter between the radio and antenna before you trust the install.
Do I really need to seal the antenna connector?
Yes, and skipping it is the most common cause of range that fades over a season or two. Water wicks past an unsealed PL-259 plug, corrodes the braided shield, and quietly kills your signal. Solder the connector cleanly, then seal it with adhesive-lined heat shrink and a wrap of self-fusing tape so no salt air reaches the copper.
