Rigging a Kayak With Electronics

The kayak in question was a 12-foot sit-on-top that a buddy of mine used for chasing redfish in shallow water. He wanted a fish finder, a couple of lights, and a way to charge his phone, all without drilling forty holes or leaving a mess of wires that would corrode by August. No console, no 12V system, no room for a full battery bank. Just a plastic hull, a paddle, and a wish list. That combination of tight constraints and real goals is exactly what makes kayak electronics rigging a satisfying little puzzle, and it teaches you more about clean wiring than a big boat ever will.

Starting With the Goal, Not the Gadgets

Every good rig starts with a question: what do you actually need on the water? On a kayak, weight and space are the enemy, so every item has to earn its spot. My friend’s real needs were depth and structure (a fish finder), visibility at dawn (navigation lights), and a dead phone insurance policy (a USB charger).

That is a short list, and short lists are good. The mistake I see most weekends is a beginner bolting on gear they saw in a video, then wondering why their battery dies at noon and their deck looks like a spaghetti dinner.

Write down the load list first. Once you know what draws power, everything else, the battery, the wire gauge, the fuse, falls into place. If you want the broader theory behind sizing a system like this, our Marine Electronics Setup Guide walks through the same logic on a larger scale.

Picking the Battery

The heart of any kayak rig is a small sealed battery. You have two realistic choices: a sealed lead-acid (SLA) battery, which is cheap and heavy, or a lithium iron phosphate (LiFePO4) pack, which costs more but weighs about a third as much.

For this build we went with a 12V 10Ah LiFePO4 battery, roughly 2.2 pounds and about the size of a paperback. Amp-hours (Ah) tell you capacity: a 10Ah battery can deliver 10 amps for one hour, or 1 amp for ten hours. Our total draw was well under 1 amp, so a full day was never in doubt.

Lead-acid would have worked too, at around 6 pounds for the same 10Ah, but on a boat you carry with your hands, weight matters. If you are curious how the same chemistry choice plays out on bigger vessels, the Lithium Boat Battery Upgrade Guide covers the tradeoffs in depth.

Wire, Fuses, and the Stuff That Actually Fails

Here is where most cheap rigs go wrong. People use household speaker wire or automotive connectors, and within a season the copper turns green and the connection goes high-resistance. On a boat you want marine-grade tinned wire, meaning each copper strand is coated in tin so salt air cannot corrode it.

For a low-draw kayak setup, 16-gauge tinned wire handles everything comfortably. Our longest run was about 4 feet from battery to fish finder, well within what 16-gauge can carry without voltage drop at these currents.

Every positive wire coming off the battery gets a fuse, and it goes within about 7 inches of the battery terminal. A 5-amp inline fuse protected the fish finder; a 3-amp fuse covered the light and USB circuit. The fuse is not there to protect the gadget. It is there so a chafed wire cannot start a fire in a hatch you cannot see.

Mounting the Fish Finder Without Wrecking the Hull

The fish finder was the big-ticket item, a small 4-inch color unit in the $130 to $200 range. On a kayak you do not through-hull the transducer (the puck that pings the bottom). Instead you shoot the signal straight through the plastic hull, which works surprisingly well on a solid-bottom sit-on-top.

We set the transducer inside the hull in a small dam of clear marine epoxy, no air bubbles, since air kills the sonar signal. The display mounted on a track-mounted arm so it could swivel out of the way during a cast. If you are still choosing a unit, How to Choose a Fish Finder breaks down cone angles and screen sizes for exactly this kind of small-boat use.

One decision worth thinking through early: do you want plain sonar, or a combo unit with GPS mapping built in? For skinny-water fishing the mapping earns its keep, and our guide on Chartplotter vs Fish Finder Combos lays out when the extra cost is worth it.

Lights, Charging, and the Small Stuff

Kayaks paddling before sunrise or after sunset need to be seen. We ran a single white 360-degree LED nav light on a tall pole at the stern, drawing about 0.1 amps, plus a small strip of interior LED for finding tackle in the dark.

A waterproof 12V-to-USB adapter handled phone charging, protected by its own fuse. Total added draw for lights and charging stayed under half an amp, which is nothing for a 10Ah pack.

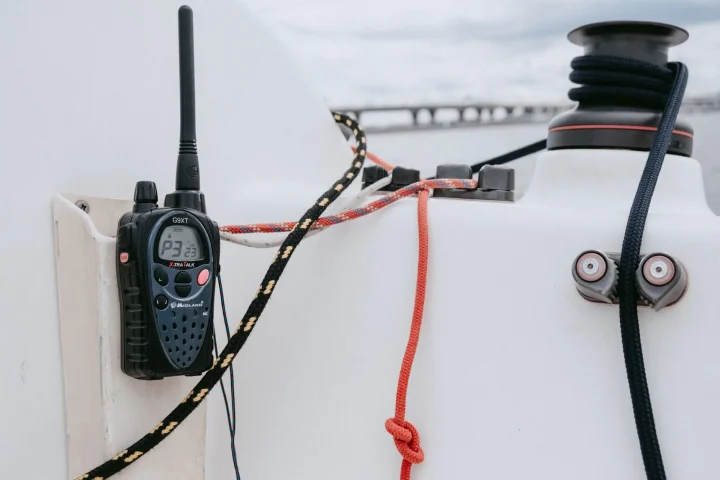

If your paddling takes you offshore or into busy channels, consider a handheld VHF radio rather than a mounted one, since it needs no wiring and floats in a pocket. For fixed installs on larger boats, our writeup on Installing a Marine VHF Radio covers antenna placement and power, though on a kayak a handheld almost always wins.

Dry Fit First, Then Drill

Before a single hole went into that hull, we laid everything out on the driveway and ran the wires loose. This dry fit is the step beginners skip and regret. You want to see where wires cross, where they chafe, and where a connector might sit in standing water.

We used a small waterproof project box to house the battery, fuse block, and connections, then ran the wires through a single sealed cable gland (a fitting that clamps around the wire and keeps water out). One entry point, sealed once, beats five holes sealed poorly.

The whole install took about four hours spread over a lazy Saturday, plus overnight for the transducer epoxy to cure. Rushing the epoxy is the classic way to end up with a sonar image that flickers.

What Went Wrong, and What I’d Do Again

The build was not flawless. Our first transducer placement sat over a slight ridge in the hull, and the sonar returned garbage until we moved it two inches forward to a flat section. Lesson learned: test the transducer position with the boat floating and a bucket of water before committing the epoxy.

The connectors held up beautifully, though. A year later, after dozens of salt trips, we opened the box to zero corrosion because every joint was heat-shrunk and tinned. That is the payoff for spending an extra $15 on proper connectors instead of the twist-on kind.

If you build one thing this season, make it a small, honest rig like this. Keep the load list short, fuse everything, use tinned wire, and dry fit before you drill. Do that and your kayak electronics will still be working three seasons from now, quietly and without drama, while the neighbor’s zip-tied special is already green and dead.
